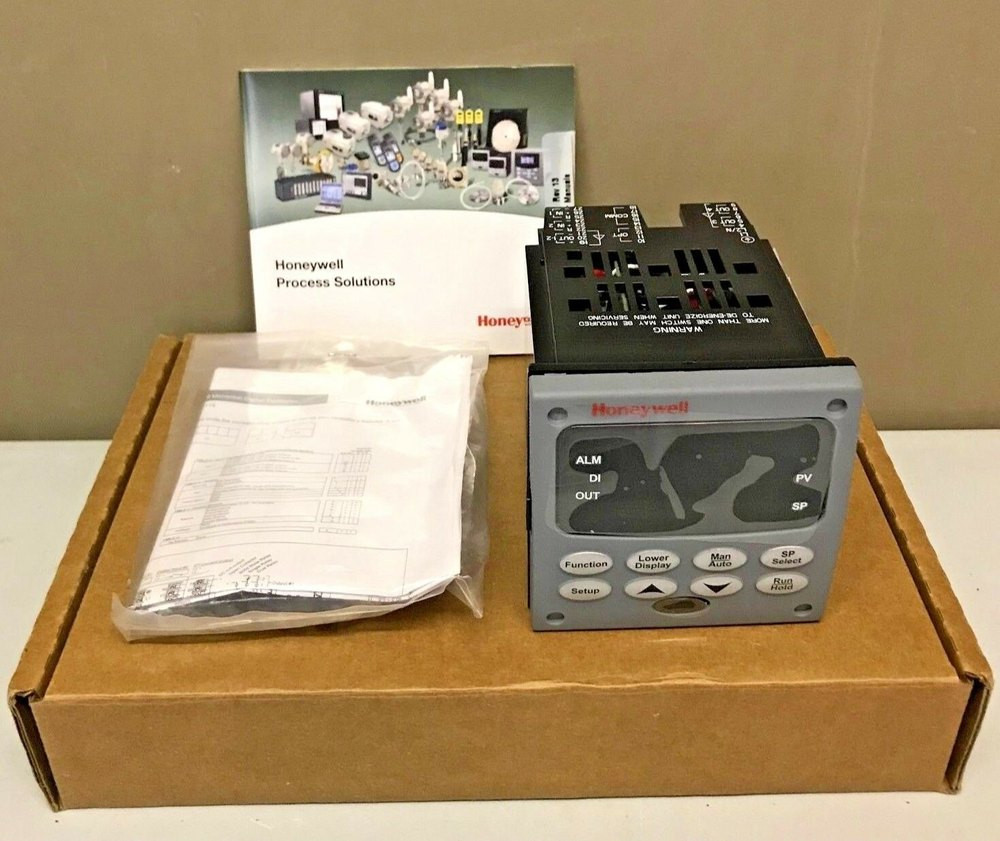

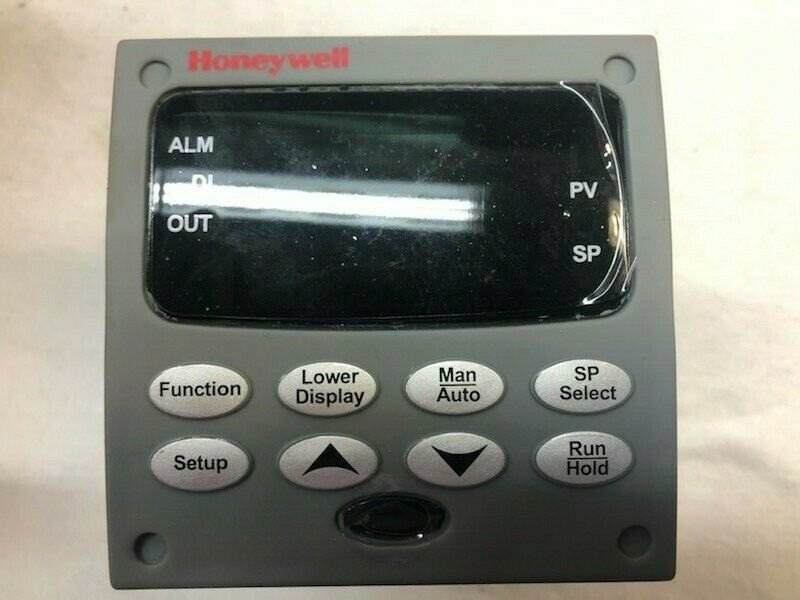

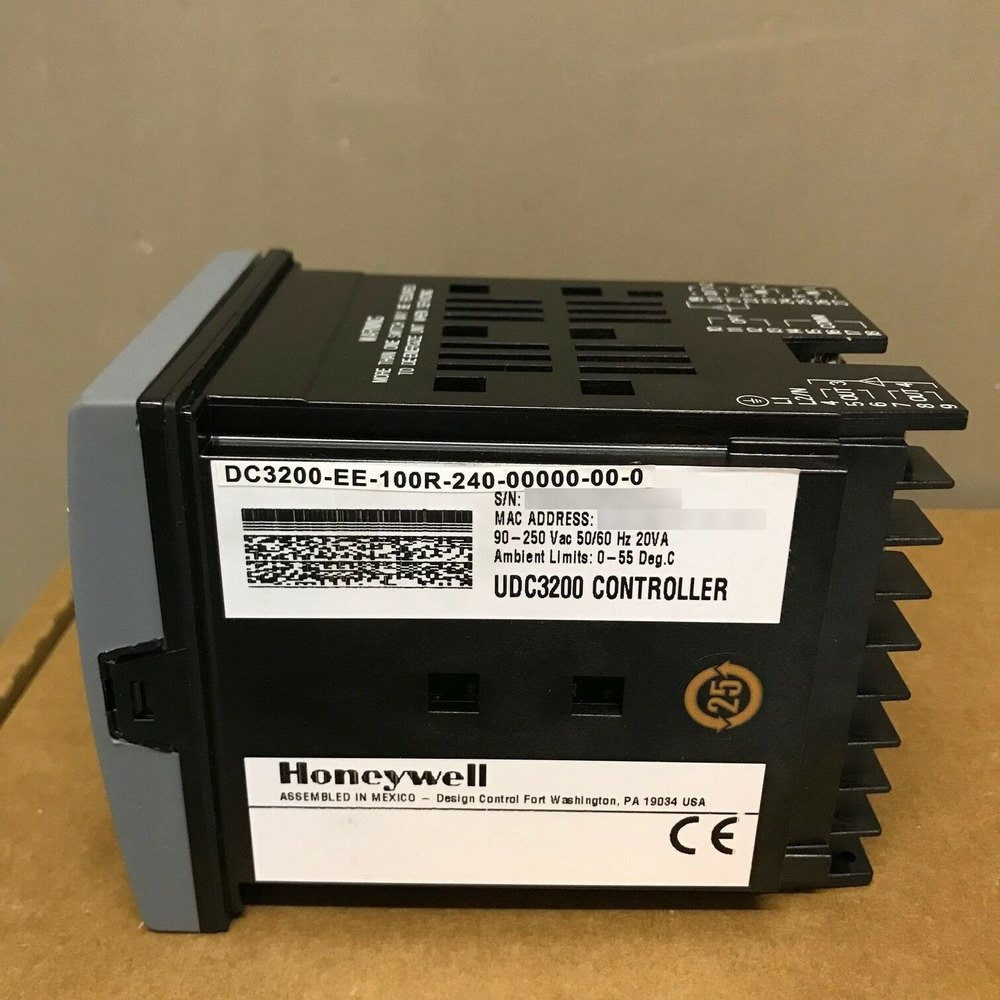

Honeywell UDC3200 PID/On-Off Universal Digital Controller

(0 reviews)
Estimate Shipping Time: 7 Days
Product Inquiry
Add to wishlist Add to compare
Brand
Honeywell
Price
NPR169,330.50 /pc
Quantity
(4 available)
Total Price
Share
Top Selling Products

Reviews & Ratings

0 out of 5.0
(0 reviews)
Rate this Product
There have been no reviews for this product yet.
Description Video
Model No.
UDC3200
Control Type
PID/On-Off
Model Name/Number
UDC3200
Power Consumption
20 VA
Weight
1.3 kg
Brand
Honeywell
Mounting
Panel-mounted
Depth
114mm
Power Inrush Current
10 A
Position Proportional
1000 ohm
Output
20 mA
Availability
In Stock

The UDC3200 Universal Digital Controller packs powerful features in the popular 1/4 DIN size. Unmatched application power includes: infrared (IR) configuration interface, two universal analog inputs and a math algorithm. When these are combined with the Accutune III  tuning with fuzzy logic overshoot suppression, the result is price/performance leadership. Application flexibility is assured by the universal analog inputs, universal AC power supply, two digital inputs, a maximum of five analog and digital outputs, RS422/485 Modbus RTU or Ethernet 10Base-T TCP/IP communication protocols, simple configuration plus total field upgrade capability for any optional feature.



Analog Inputs:

  • The UDC3200 has two analog inputs with a typical accuracy of +/-0.20% of full-scale input and a typical resolution of 16 bits. Both analog inputs are sampled six times per second (every 166 ms).
  • The first, or process variable input, can be one of the various thermocouple, RTD, Radiamatic or linear actuations. Linear actuations have thermocouple, RTD, and Radiamatic transmitter characterization capability as a standard feature. Linear actuations also have square root capability.
  • The optional second input is isolated and accepts the same actuations as input one, or it provides the slidewire input for position proportional control.
  • All actuations and characterizations are keyboard configurable. Cold junction compensation is provided for thermocouple type inputs. Upscale, downscale or failsafe sensor break protection is keyboard configurable. A configurable digital filter of 0 to 120 seconds provides input signal damping.



Math Functions:

  • A pre-configured algorithm is available for easy implementation. This includes the capability of using a ratio and bias with any input. You can select from the following menu:
  • Feedforward summer
  • Weighted average
  • Feedforward multiplier
  • Summer/Subtractor
  • Multiplier/Divider
  • Input high/Low select
