Fuji PXF4 PID/On-Off Temperature Controller (PXF5)

(0 reviews)
Estimate Shipping Time: 7 Days
Product Inquiry
Add to wishlist Add to compare
Brand
Fuji
Price
NPR9,821.96 NPR9,942.87 /pc -1%
Quantity
(5 available)
Total Price
Share
Top Selling Products

Reviews & Ratings

0 out of 5.0
(0 reviews)
Rate this Product
There have been no reviews for this product yet.
Description
Model Number
PXF5
Brand
Fuji
Control Type
PID/On-Off
Size
48 x 48 mm
Frequency
50/60 Hz
Voltage
100-240 VAC
Mounting Type
Panel
Display Type
4 Digit/7 Segment
Accuracy
0.3% FS +/- 1 Degree C
Control output Type
Relay/SSR, Analog (mA/mV)
Input Type
Current (mA), Thermocouple, RTD, Voltage (mV)
Model No.
PXF4
Sampling Rate
50 ms
Current Transformer
100 A
Control Cycle
99 s
RTD Input
+/-0.2%
SV/PID Selection
Up to 8 groups
Availability
In Stock
Features:
  • Precise control
    Achieved a processing speed of 50 ms which is 10 times faster than conventional models. Reading accuracy is also improved from ±0.5% to ±0.2%*.
    *Comparison under 0–850°C range, with RTD. See the Data Sheet for details.

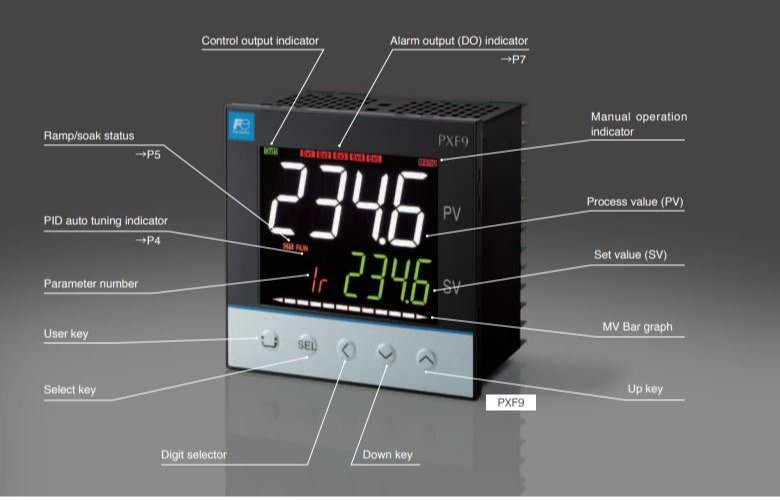

  • Easy-to-see display
    MVA LCD* which offers high contrast and wide viewing angle
    Process value is displayed in white
    *Minimal translucent type vertical alignment liquid crystal display
  • Practical options
    Simple watt-hour metering function: allows you to monitor energy consumption
    Operating days alarm: tells you the appropriate time for maintenance work
  • Most compact class in industry
    36% smaller (than conventional models) and 58-mm depth shallow body helps downsize your facility

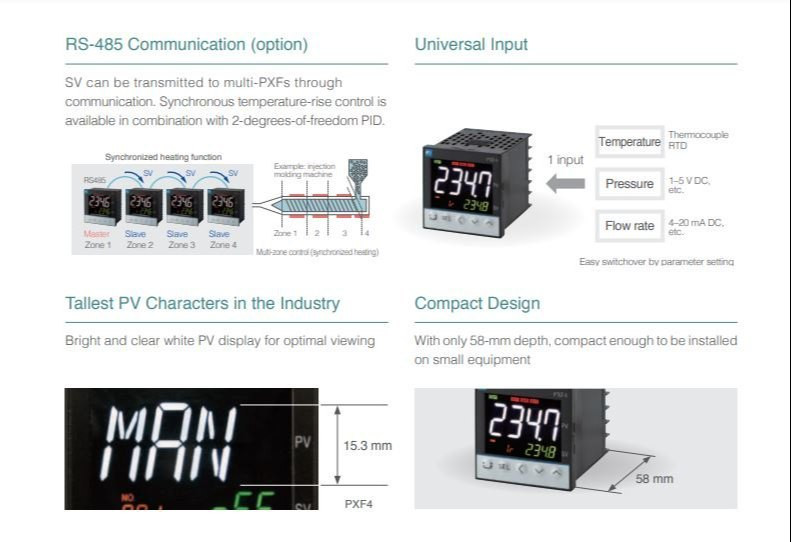

  • Universal input
    You can use any input among RTD, thermocouples, voltage, current, and mV. The set-up for input change is very easy, only requires parameter change. This allows reduction of maintenance parts.

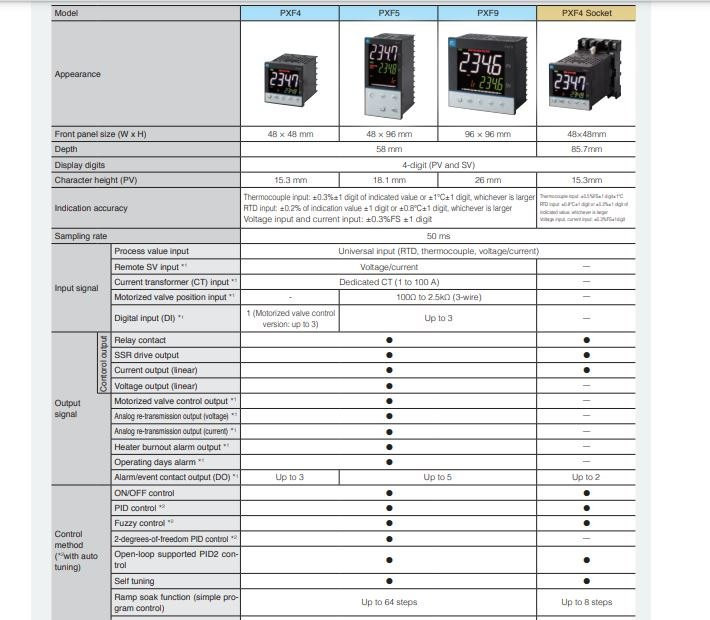

Specifications:
Input typeUniversal input: thermocouple, RTD, voltage, current, mV
Sampling rate50 ms
AccuracyThermocouple input: either ±1°C ±1 digit or ±0.3% of indicated value ±1 digit, whichever is larger
RTD input: ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger
Voltage and current input: ±0.3% FS ± 1digit
Control cycle0.1 s to 99 s
Output typeRelay contact output, SSR/SSC drive output, current output, voltage output, motor-operated valve control output
ControlON/OFF, PID, PID2, fuzzy, 2-degrees-of-freedom PID,
auto tuning, self tuning
CommunicationCommunication port x 1 (for optional USB cable)
RS-485 port x 1 (Modbus RTU protocol)
Other functionsRamp soak (simple program control): up to 64 steps
SV/PID selection: up to 8 groups
Soft start
User-defined keys
Auto/manual switching
Simple watt-hour monitoring
Operating days alarm
Heating/cooling control (option)
Alarm (option)
Multidrop control via RS-485 network, parameter copy, programless communication
Contact output (option)up to 5 (PXF4: up to 3)
Contact input (option)up to 3 (PXF4: up to 1)
Transfer output (option)Output signal: voltage or current
CT input (option)for heater break alarm or watt-hour metering.
Current transformer (for 1–100 A) is optional.
Remote SV input (option)Input signal: voltage or current
DisplayM. V. A. LCD, 4-color, white PV display

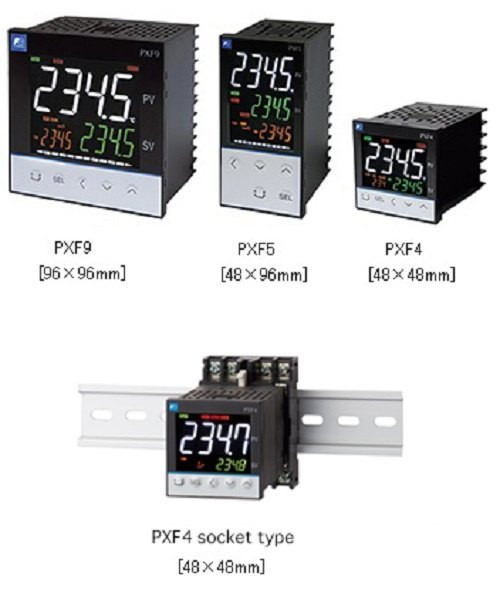

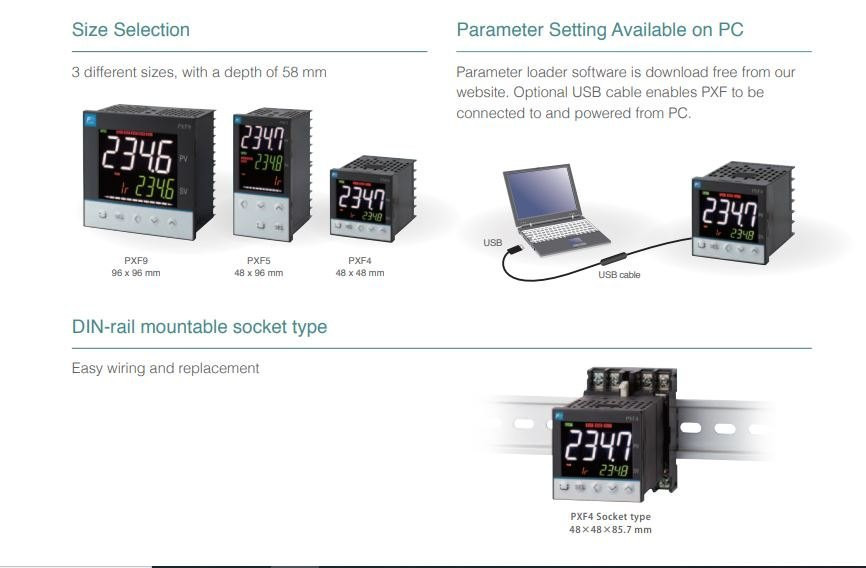

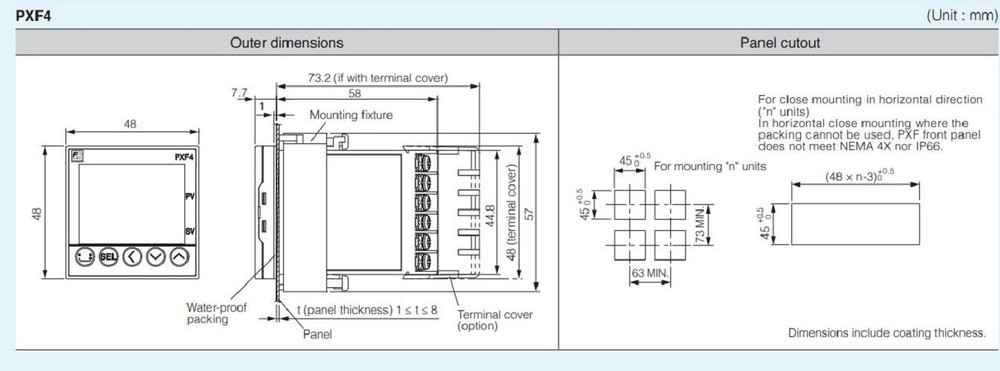

Dimensions (W x H x D)PXF4: 48 × 48 × 65.7 mm
PXF5: 48 × 96 × 65.7 mm
PXF9: 96 × 96 × 65.7 mm
Power supply voltage100–240 V AC, 50/60 Hz, 24 V AC/DC
EnclosureFront waterproof (when watertight packing is used), IP 66 equivalent
